How Do You Use a Hose Clamp?

DINSEN Hose Clamp is a connection part used to fasten pipes, hoses or other cylindrical objects. The following are the usage and precautions of DINSEN hose clamps.

Choose the right hose clamp:

 Select the throat clamp of the corresponding size according to the diameter of the pipe or hose to be fastened. The specifications of the throat clamp are usually expressed in the applicable pipe diameter range, for example, 6-10mm, 8-12mm, etc. Make sure that the size of the selected hose clamp matches the size of the object to be fastened to ensure a good fastening effect.

 Choose a hose clip of suitable material according to the use environment and requirements. Common materials include stainless steel, galvanized steel and plastic. Stainless steel hose clips have good corrosion resistance and are suitable for harsh environments such as humidity, acid and alkali; galvanized steel hose clamps are relatively low in price and have certain anti-rust ability, which can be used in general industrial and civil occasions; plastic hose clamps are light in weight and have good insulation performance, and are often used in some places where weight and insulation are required.

Installing the hose clamp:

  First, put the hose clamp on the connection part of the pipes or hose. For some hose clamps with adjustable bolts, make sure the bolts are in an easy-to-access position for subsequent tightening and adjustment.

  Align the two ends of the pipe or hose and insert them into the hose clamp so that they fit tightly. If you are connecting two pipes of different diameters, you may need to use a transition joint or a reducer to ensure the tightness and stability of the connection.

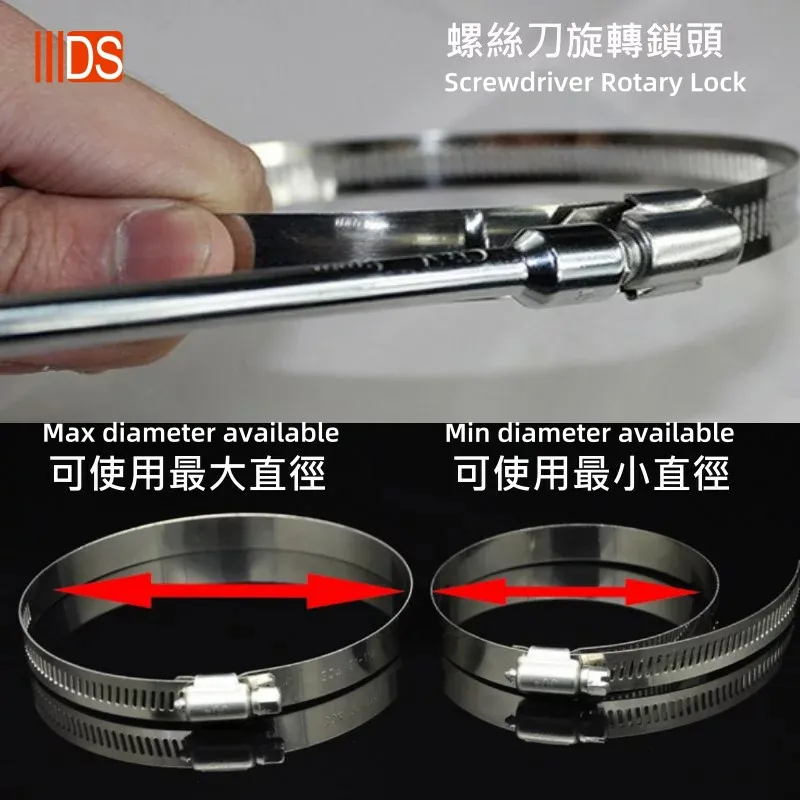

  Use tools such as a screwdriver or wrench to rotate the bolts or nuts on the hose clamp and gradually tighten the hose clamp. During the tightening process, pay attention to tightening the bolts evenly to avoid over-tightening one side of the hose clamp and over-loosening the other side, resulting in loose tightening or deformation of the pipe. At the same time, pay close attention to the deformation of the pipe or hose, and do not over-tighten it to avoid damaging the pipe or hose.

Precautions in use:

   When using DINSEN hose clamps, check the tightening status of the hose clamp regularly. Due to factors such as pressure changes, temperature fluctuations and mechanical vibrations of the medium in the pipeline, the hose clamp may become loose. Regularly check and tighten the loose hose clamp in time to prevent leakage and other problems at the pipeline connection.

   If the hose clamp is found to be corroded, damaged or deformed, it should be replaced with a new one in time. Especially in some key pipeline systems, such as gas pipelines and water pipes, the reliability of the throat clamp is directly related to the safe operation of the system. Once a problem is found, it must be dealt with immediately.

   When using thehose clamp in some high temperature environments, choose a high temperature resistant material, such as a stainless steel hose clamp. At the same time, pay attention to the effect of high temperature on the expansion of the pipeline and the hose clamp, and adjust the tightening force appropriately to avoid the hose clamp being too tight or too loose due to thermal expansion and contraction.

Removing the hose clamps:

   When removing the hose clamp, use the corresponding tools to loosen the bolts or nuts to gradually loosen the throat hoop. Then remove the hose clamp, from the pipe or hose. If the hose clamp, is difficult to remove after long-term use, you can try to use some lubricants, such as WD-40, etc., spray it on the contact part between the hose clamp and the pipe, and then remove it after the lubricant penetrates.

   If the removed hose clamp can still be used, it should be properly kept for next use. If the hose clamp is damaged or aged, it should be handled in accordance with relevant regulations to avoid random discarding and causing environmental pollution.

For hose clamps, choose DINSEN brand！
