How to Install Stainless Steel Pipe Couplings?

In industrial piping systems, 90% of leaks are caused not by the material itself but by connector installation errors. Does this alarming figure make you reconsider your current install stainless steel pipe couplings ?

As the critical connection point of the "blood vessels" of industry, the proper installation of pipe couplings directly determines the safety, durability, and operational efficiency of the entire system. DINSEN Clamps has been deeply engaged in the field of high-performance coupling pipes for decades. We understand that high-quality products must be accompanied by scientific installation to truly unleash their technological value.

1. Pre-installation preparation is more important than the installation itself:

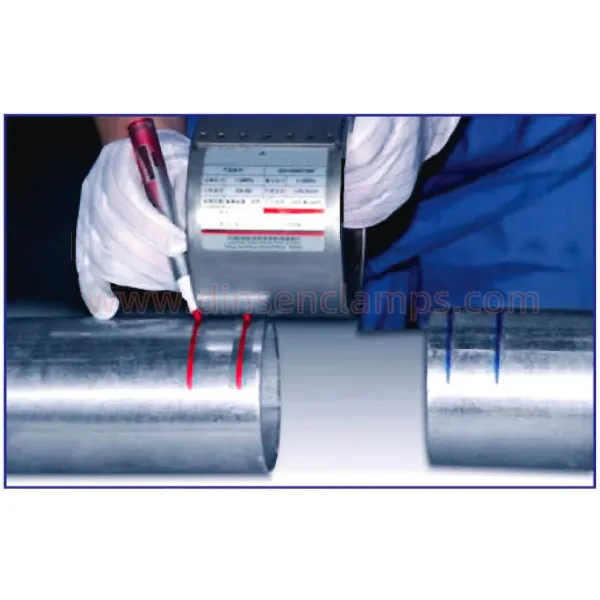

Operating condition verification: Record parameters such as pressure range, media corrosivity, and temperature fluctuation profile. Compatibility matching: Select gasket material based on media characteristics. Dimension calibration: Use a dedicated caliper to measure the pipe's outer diameter, ensuring deviations within ISO standards.

2. Pipe cut quality directly impacts sealing effectiveness:

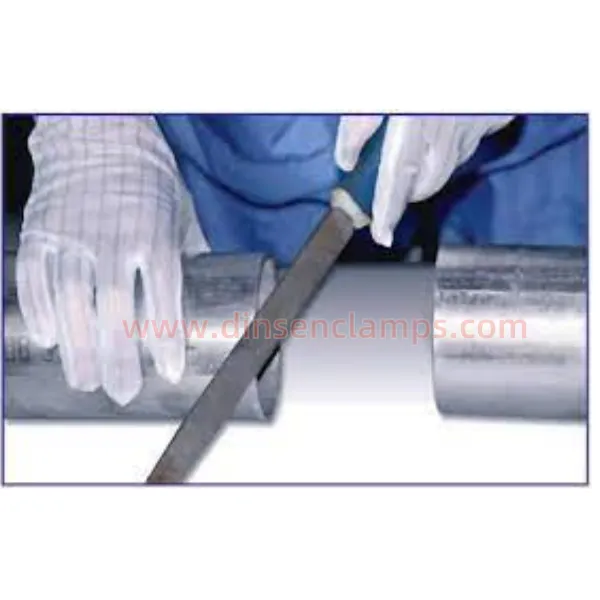

Use mechanical cutting instead of flame cutting to ensure a smooth, burr-free end surface. Remove oxide layers and contaminants within a 3cm radius inside and outside the port. Passivate stainless steel pipes to prevent electrochemical corrosion.

3. Accuracy: Use a laser alignment tool to ensure pipe concentricity (deviation ≤ 0.5mm). Bolt Pre-Tightening: Tighten in a diagonal order, initially pre-tightening to 30% of rated torque. Pressure Test: Apply pressure in stages to 1.5 times the working pressure, maintaining pressure for 30 minutes without pressure drop.

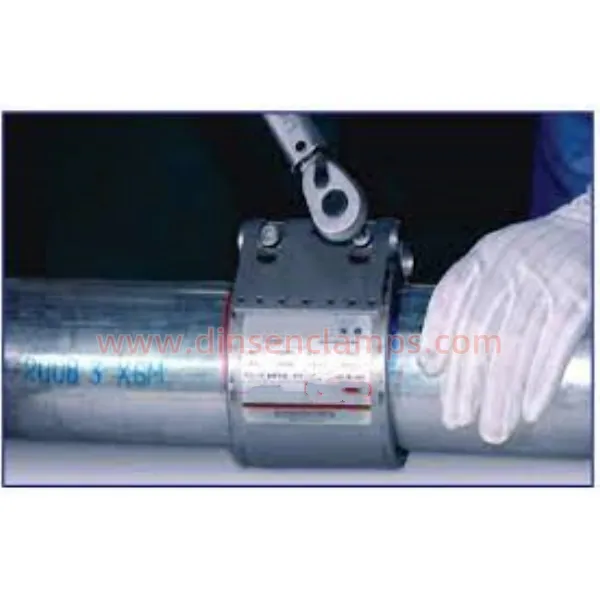

4. Intelligent Tightening: Use a digital torque wrench to precisely control tightening force. Execute a three-stage tightening method: 30% → 60% → 100% rated torque. Recheck torque after 24 hours to compensate for pre-tightening force loss due to stress relaxation.

5. System Verification: Helium mass spectrometer leak test (sensitivity up to 1×10⁻⁹) Pa·m³/s). Thermal imagers detect temperature uniformity. Acoustic imagers capture ultrasonic signals of tiny leaks

Why choose DINSEN Clamps?

✅ Material Advantages: Self-developed HG88 high-alloy material, with 3.2 times longer corrosion resistance and lifespan
✅ Structural Innovation: Asymmetric sealing groove design compensates for preload loss caused by thermal expansion and contraction
✅ Strict quality inspection: pipe coupling water pressure test, watertight test, etc.

Contact us for a quote.
