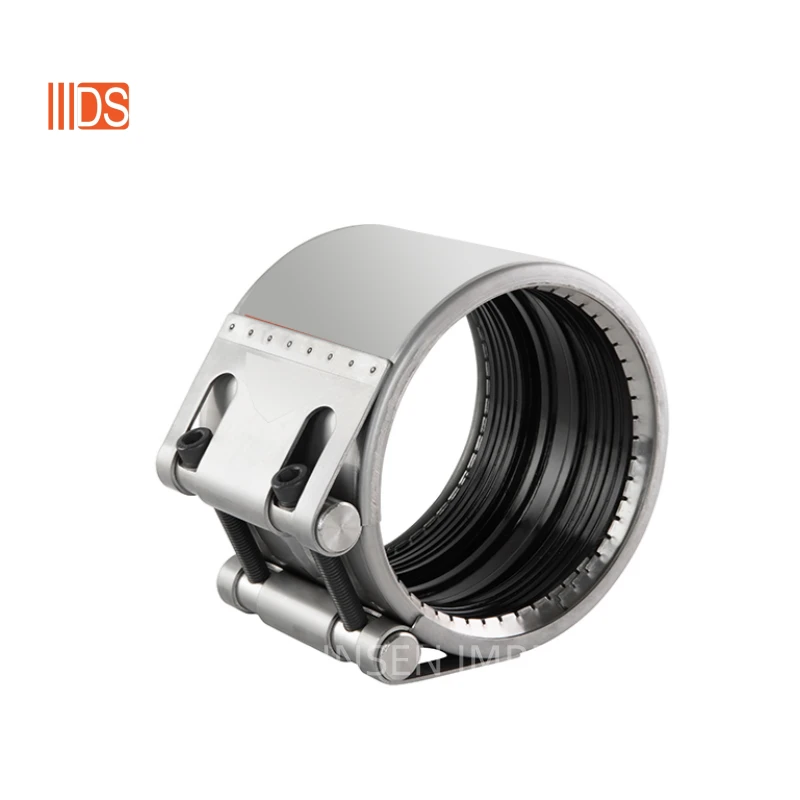

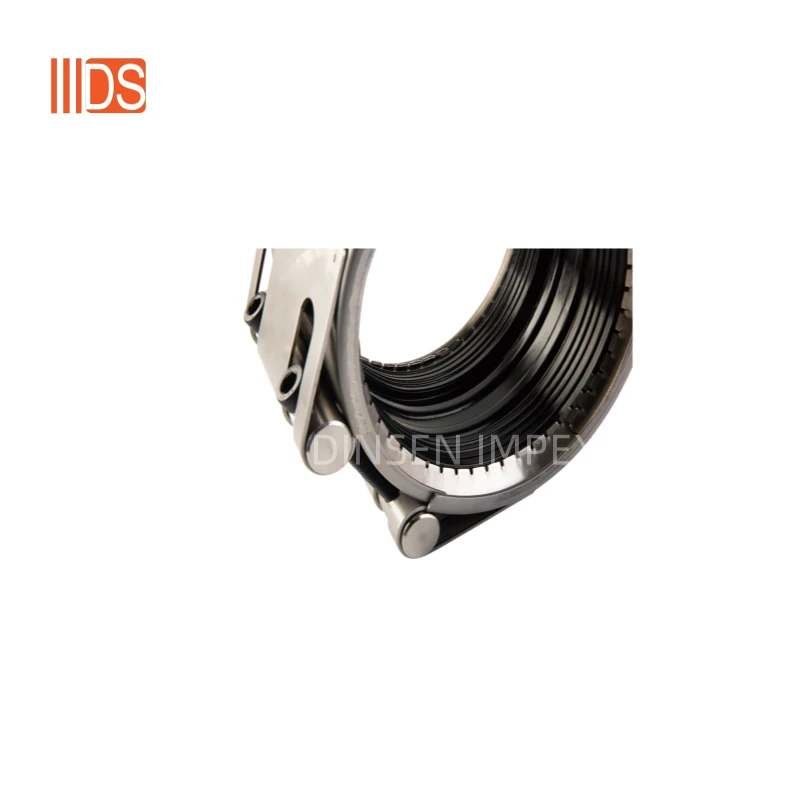

DS-TC- Pipe Couplings
DS-TC- Pipe Couplings

DS-TC- Pipe Couplings

·It can be used in the surroundings where high security and
stability is required.
·Its can fully meet with the special requirement of warship
building.
·The highest pressure can reach up to 5.0mpa
·It can be used on pull-out resistant pipeline connection on
vessel building and offshore oil-drilling platform.

down load to pdf


Share
Detail

Details

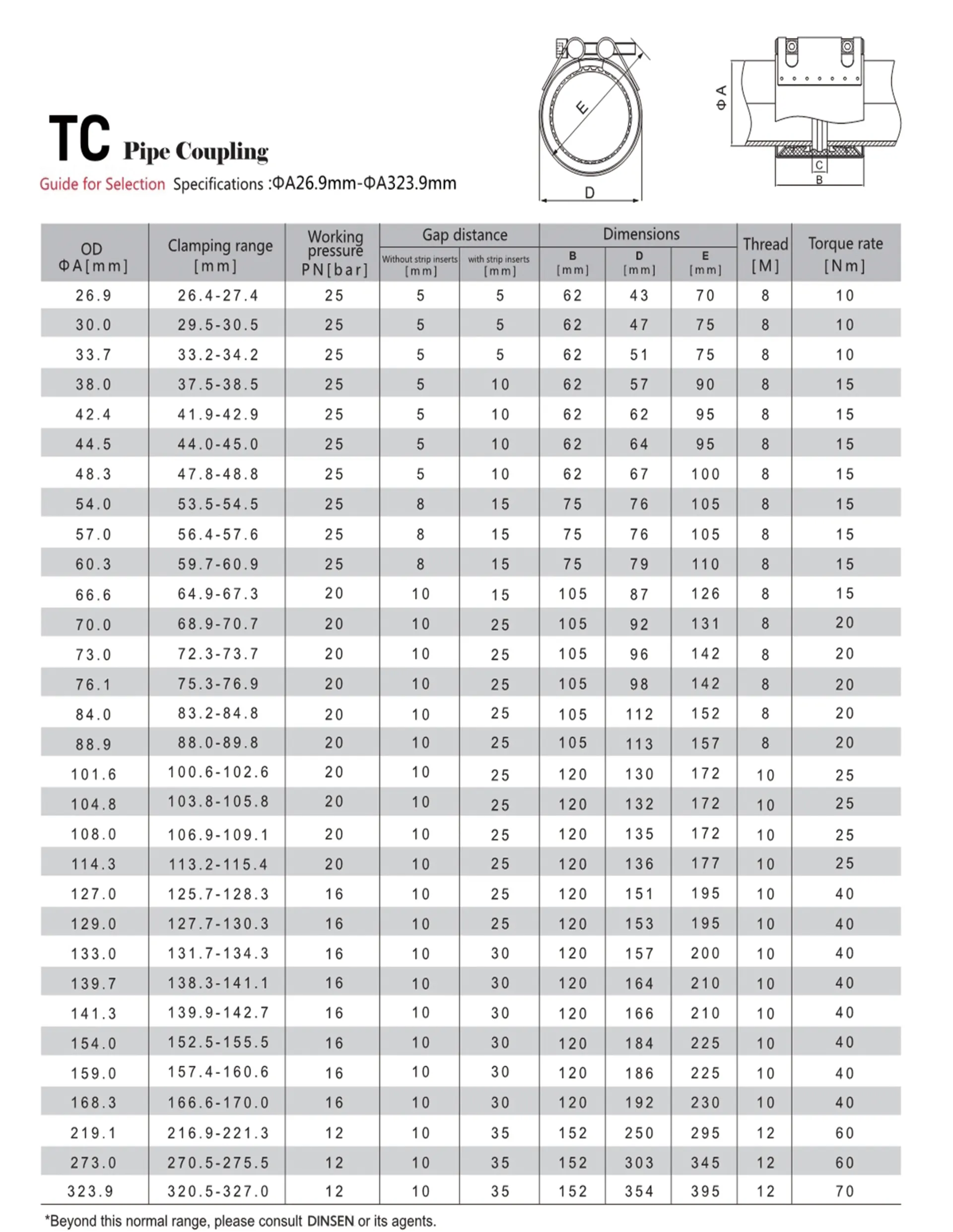

Specifications:ΦA26.9mm-ΦA323.9mm

Read More About coupling pipes

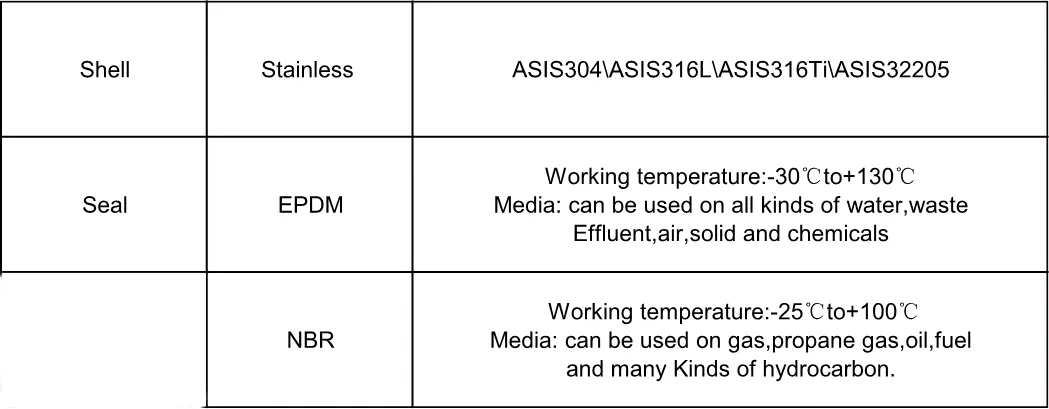

In addition: H NBR,MVQ and VITON A are optional


Fasteners: Anti-decaying treated heavy-loading bolts,solid bars.Stainless steel


Components and polyfluortetraethylene components are also available.



INFORMATIONS:



·Testing Pressure:1.5 X PB


·Standard: German Standard of DIN86128-1 and DIN86128-2, China Vessel Standard of CB/T4176-2013


·Enterprise Standard: Q/3205007YDZ01-2014



Please refer to the following example for design and type selection for purchasing:


DS--TC--114.3 -- W1（W2/W3) - EPDM(EBR/MVQ):Brand ,series OD ,shell material ,sealing material

Read More About repair coupling
