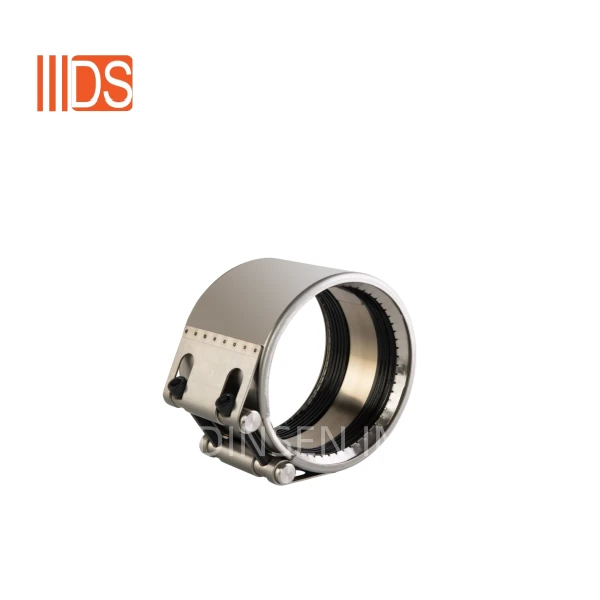

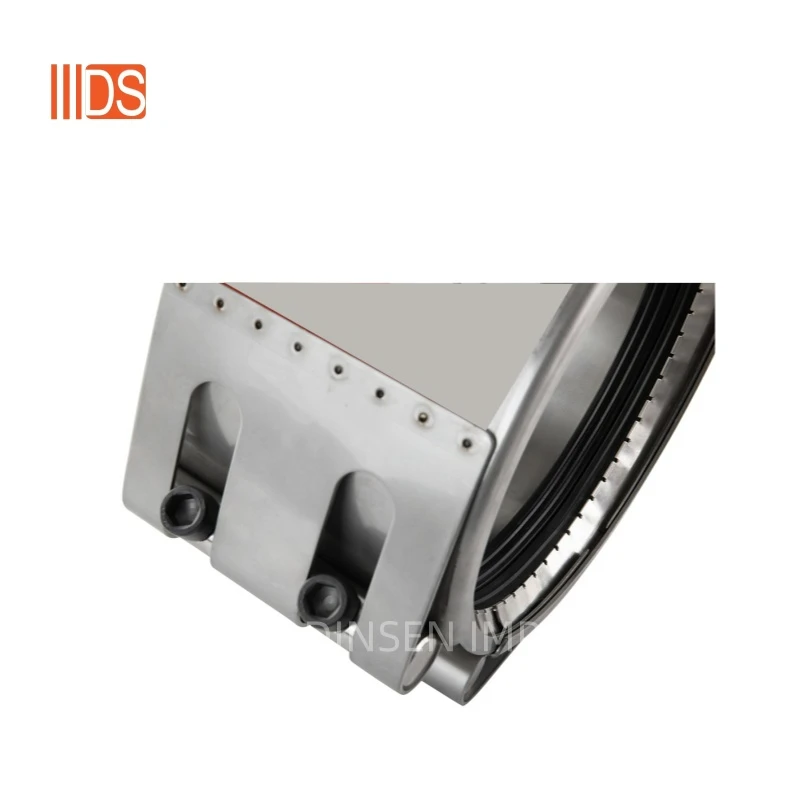

DS-HC- Pipe Couplings
DS-HC- Pipe Couplings

DS-HC- Pipe Couplings

· It is be used in the surroundings where high security and stability is
required.
· Its advantage and characteristics can fully meet with the special
requirement of warship building.
· The strengthened lip seal allows higher thermo-compression
variation, and the minimal bolt torque may expand the life cycle of
the seal.
· The highest pressure can reach up to 5.0mpa

down load to pdf


Share
Detail

Details

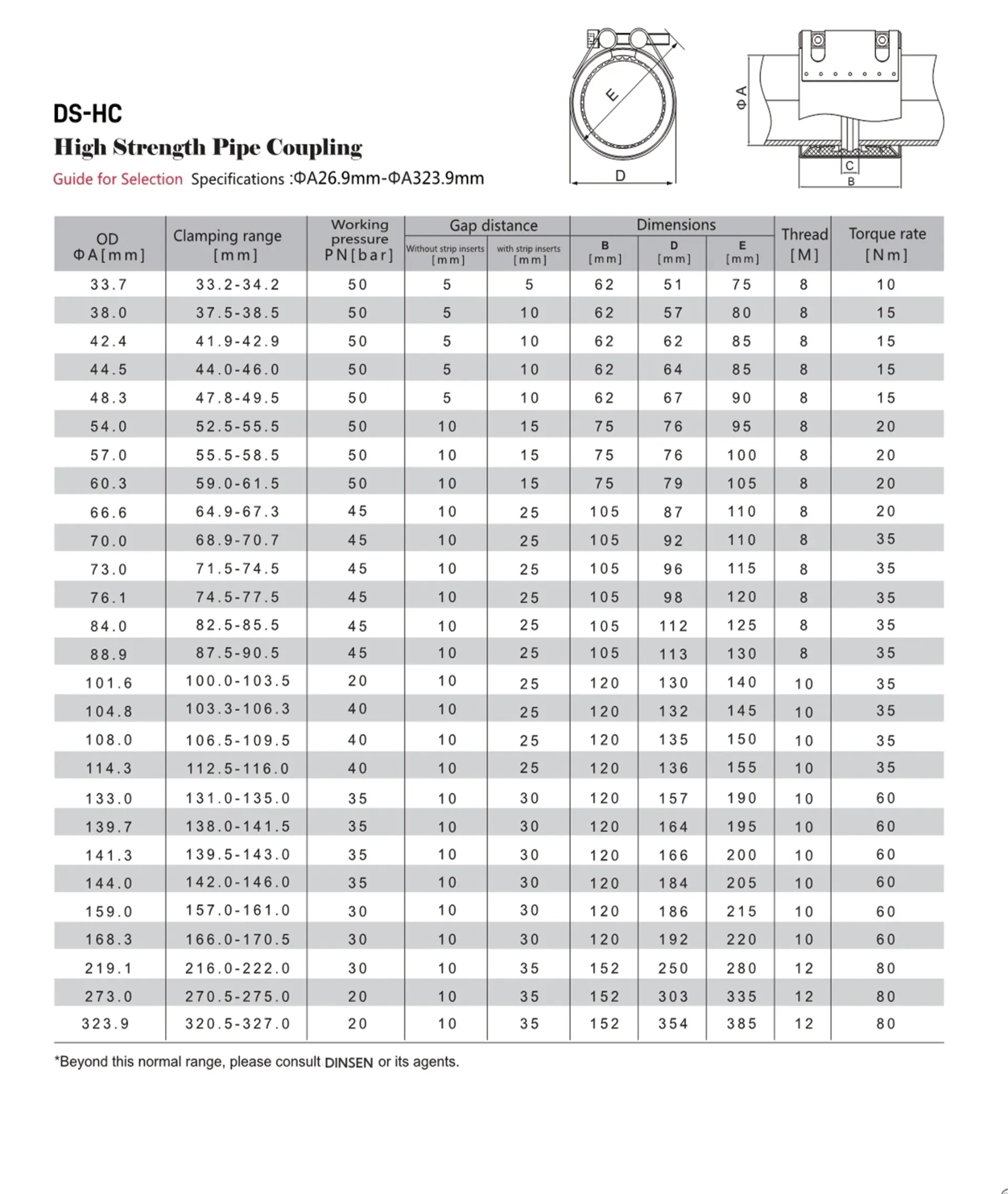

Specifications:ΦA26.9mm-ΦA323.9mm

Read More About flex pipe coupler

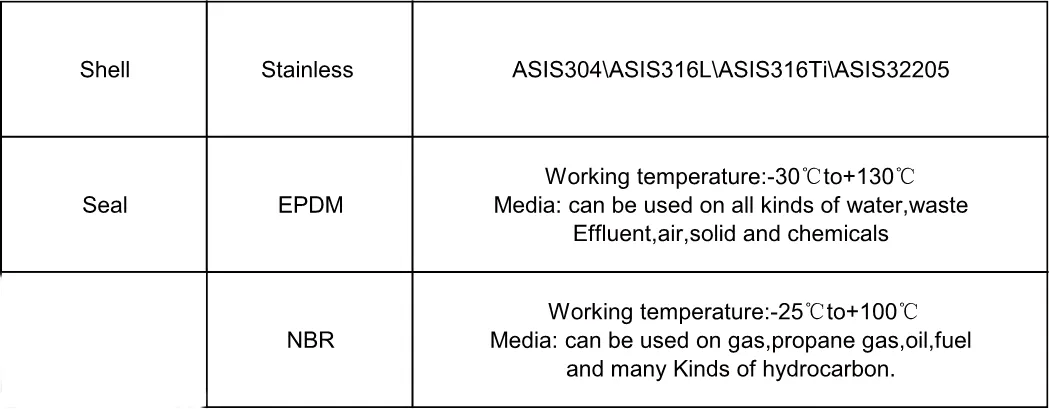

In addition: H NBR,MVQ and VITON A are optional


Fasteners: Anti-decaying treated heavy-loading bolts,solid bars.Stainless stee

l
Components and polyfluortetraethylene components are also available.



INFORMATIONS:


·Testing Pressure:1.5 X PB


·Standard: German Standard of DIN86128-1 and DIN86128-2, China Vessel Standard of CB/T4176-2013


·Enterprise Standard: Q/3205007YDZ01-2014



Please refer to the following example for design and type selection for purchasing:


DS--HC--114.3 - W1（W2/W3) - EPDM:brand ,series OD ,shell material ,sealing material
